BLUETTI PV200 200W Solar Panel
- Monocrystalline Solar Cells With Up to 23.4% Efficiency
- Long-lasting ETFE Coating
- Foldable & Portable
- Compatible With Most Solar Generators with MC4 Connectors
- 24-month Warranty
2-year Hassle Free
Solar Charge Anywhere
23.4% High Efficiency
Easy Setup With Kickstand
(The recharging time refers to 80% of power level being charged*)
BLUETTI EB55 (537Wh) + PV200: Charge in as soon as 3 hours
BLUETTI AC200P (2,000Wh) + 2*PV200: Charge in as soon as 5.5 hours
BLUETTI AC200MAX (2,048Wh) + 4*PV200: Charge in as soon as 3 hours
BLUETTI AC300 + B300 (3,072Wh) + 8*PV200: Charge in as soon as 2.5 hours
BLUETTI EP500 (5,120Wh) + 6*PV200: Charge in as soon as 4.5 hours
Built to Last
Portable in Every Way
Other Top Rated Products

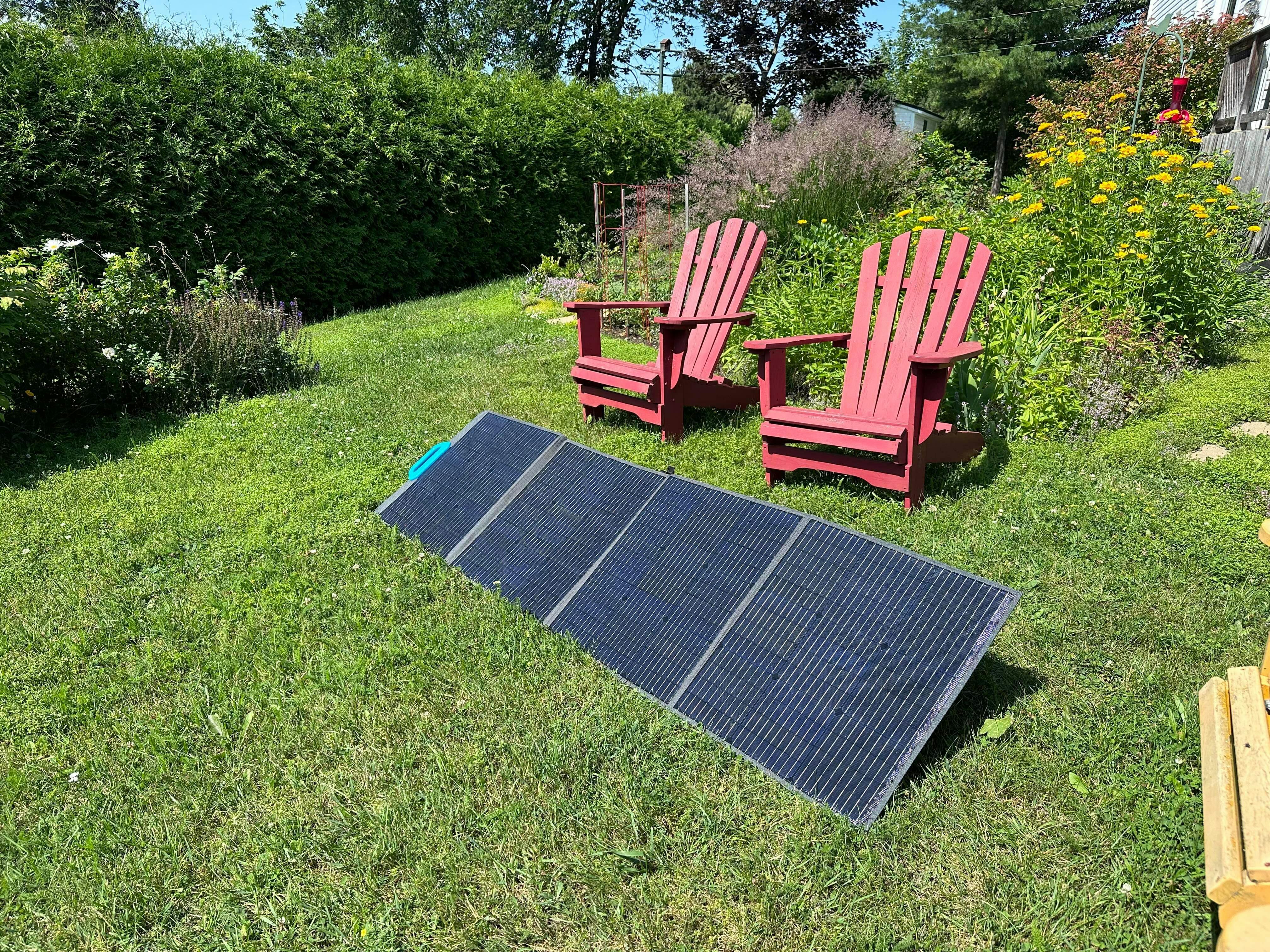

The solar panels pack up nice for travel and only take a few seconds to set up once we arrive at a site.
BLUETTI PV200 200W Solar Panel
The PV 200 is a light weight, compact and easy to set up device making it easy to set up and move around by almost anyone. Although the PV 200 must be treated with care, it is rugged enough to withstand transport , setup and takedown. It works so well that I am considering purchasing another PV 200 to charge my AC 200MAX even faster
Q1: What can the 200W Solar Panel Charge?A:
1pcs BLUETTI 200W solar panel can quickly charge the BLUETTI EB55 within 3.5-4hrs. 1pcs BLUETTI 200W solar panel can quickly charge the BLUETTI EB70 within 4.7-5.2hrs. 2pcs BLUETTI 200W solar panels can quickly charge the Bluetti EB150 about 5.5-6 hours by connecting them in series. 2pcs BLUETTI 120W solar panels can quickly charge the Bluetti EB240 about 9-9.5 hours by connecting them in series. 3pcs BLUETTI 120W solar panels can quickly charge the BLUETTI AC200P within 4.5-5 hours by connecting them in series. 3pcs BLUETTI 200W solar panels can quickly charge the BLUETTI AC200Max within 4.4-5hrs by connecting them in series. 6pcs BLUETTI 200W solar panels can quickly charge the BLUETTI AC300+*2B300 within 6.5-7hrs by connecting them in parallel. Besides the BLUETTI power station (AC200P, AC50S, EB240, EB150, AC20, AC200MAX, AC300), it can also be used with Baldr/Jackery/Goal Zero/PaxcessRockpals, AIMTOM, JACKERY If you have your own adapter (need to buy adapter yourself).
Friendly Note: which means that if the total power of your devices exceeds 700W.
Q2: Is BLUETTI PV200 Waterproof?A:Yes, IP65 rated for junction box, but do not expose it to constant rain or snow.
Yes, IP65 rated for junction box, but do not expose the solar panels to rain or snow.
Tips: The charging time are affected by many factors: such as the sunlight intensity and the panel's angle put on the ground. The 200W of solar is tested in an ideal laboratory. However, the intensity of the sunlight constantly changes. In addition, the angel of sunlight to solar panel also changes with the rotation of the sun.
Q3: What factors will affect the solar conversation rate?
A. the strength of the sun light
B. environment temperature
C. the angle you place the solar panel D. the length of the solar cable
Q4: How many pieces of solar panels can be used on a power station?A:
check the max. open circuit voltage B:the max. short-circuit current C:the max. power of the solar panel D:Make sure the total max. value does not exceed the numbers in the specification when you connect several pieces in series or paralell.
Q5: What are the compatible BLUETTI Models?A:AC50S (500Wh/300W power station)
EB55 (537Wh/700W power station)
EB70 (716Wh/700W power station)
EB150 (1500Wh/1000W power station)
EB240 (2400Wh/1000W Power Station)
AC200P (2000Wh/2000W Power Station)
AC200Max (2048Wh/2200W Power Station)
AC300 (3072-12288Wh/3000W Power Station)
☼To verify the compatibility with our future new product, please read the menu comes with the product, or contact us directly. ☼To verify the compatibility with devices that are not sold by our store, please contact the related seller.
DO NOT connect PV200 with any other solar panel model but PV200, or will be damaged.
