Tech Specs
Specifications

Battery Info
Capacity:
Works with B300s or B300, starts at 3072Wh
OUTPUT
AC Outlets:
3 x 120V/20A Outlets
1 x 120V/30A L14-30
1 x 120V/30A TT-30
1 x 120V/50A NEMA14-50
5,000W In Total
Inverter Type:
Pure Sine Wave
Surge Power:
10,000W
USB-C Port:
2 x 100W Max.
USB-A Port:
2 x 5V/3A USB-A
2 x 18W USB-A
12V* DC Outlets:
1 x 12V/30A (RV Outlet)
1 x 24V/10A (Car Outlet)
*All Regulated.
Wireless Charging Pad:
2 x 15W Max. (For Each)
INPUT
AC Input:
4,500W Max. (W/ 1*B300S), 5,000W Max.(W/ 2 or more B300S)
Solar Input:
3,000W Max., VOC 12-150VDC, 12A
Car Input:
12/24V from Cigarette Lighter Port
Maximum Input:
6,000W (W/ 1*B300S), 8,000W(W/ 2 or more B300S) with AC and Solar Input Simultaneously
GENERAL
240V Split Phase Bonding:
Yes
Scalability:
Expandable W/Up to 6x B300s
Simultaneous Recharge & Discharge:
Yes
APP Control:
Yes, via WiFi and Bluetooth
Weight:
66.2lbs (30kg)
Dimensions (LxWxD):
20.5 x 12.8 x 14.1in ( 52 x 32.5 x 35.8cm)
Operating Temperature:
-4-104℉ (-20-40℃)
Storage Temperature:
-4-104℉ (-20-40℃)
Certification:
UL Standard, CEC, DOE, FCC, CA Prop 65

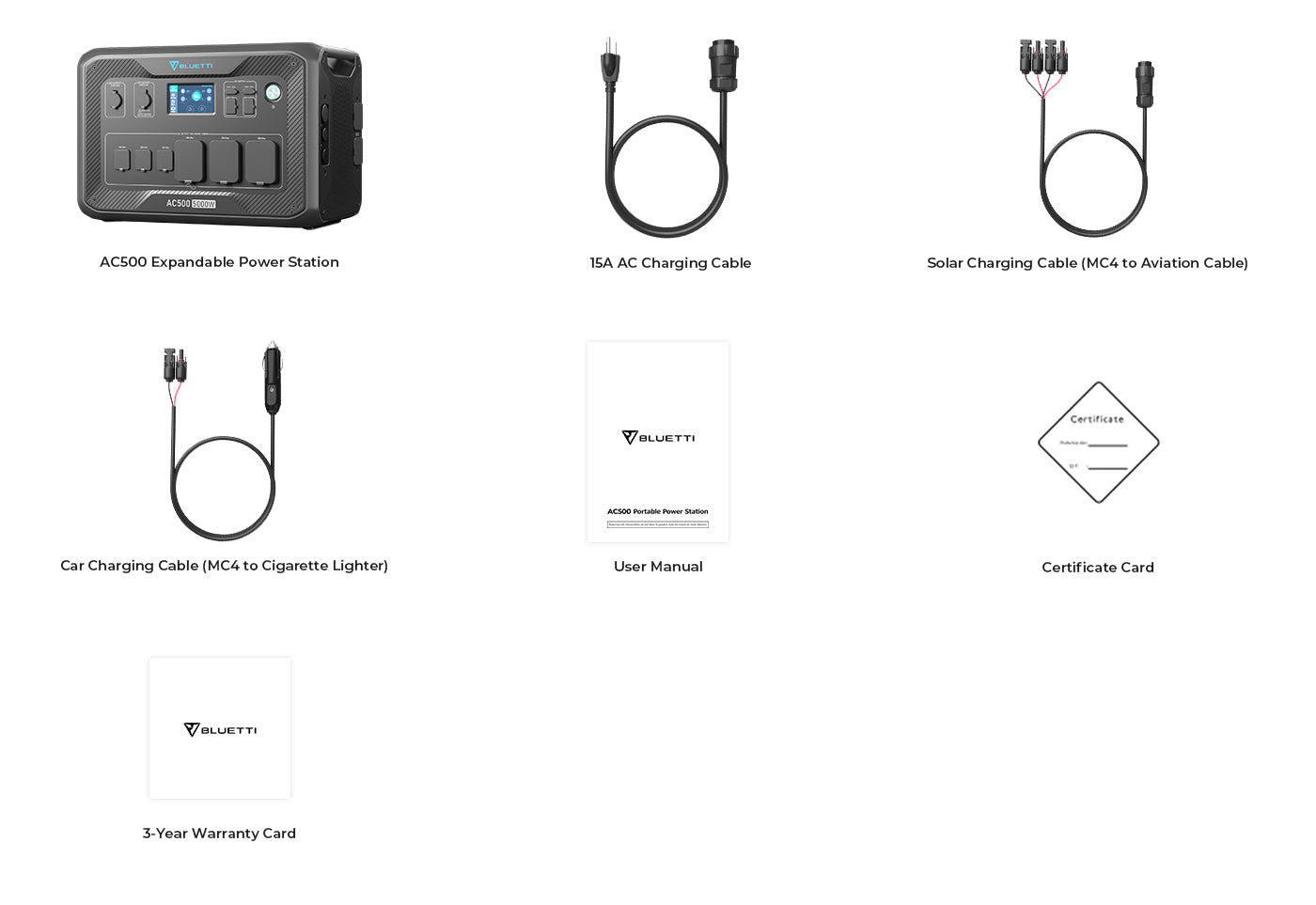

In the Box
